For easy adjustment and fine tuning of live axle rear roll centre.

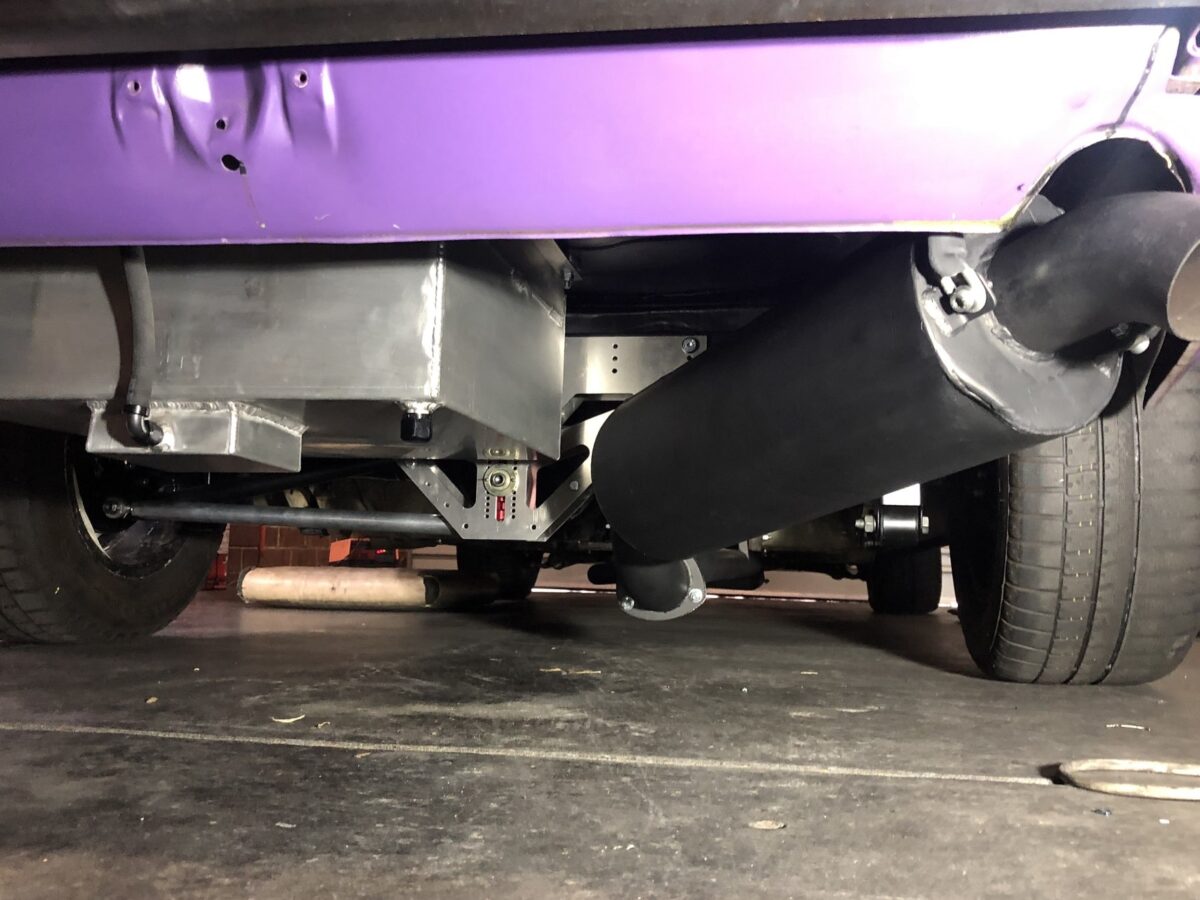

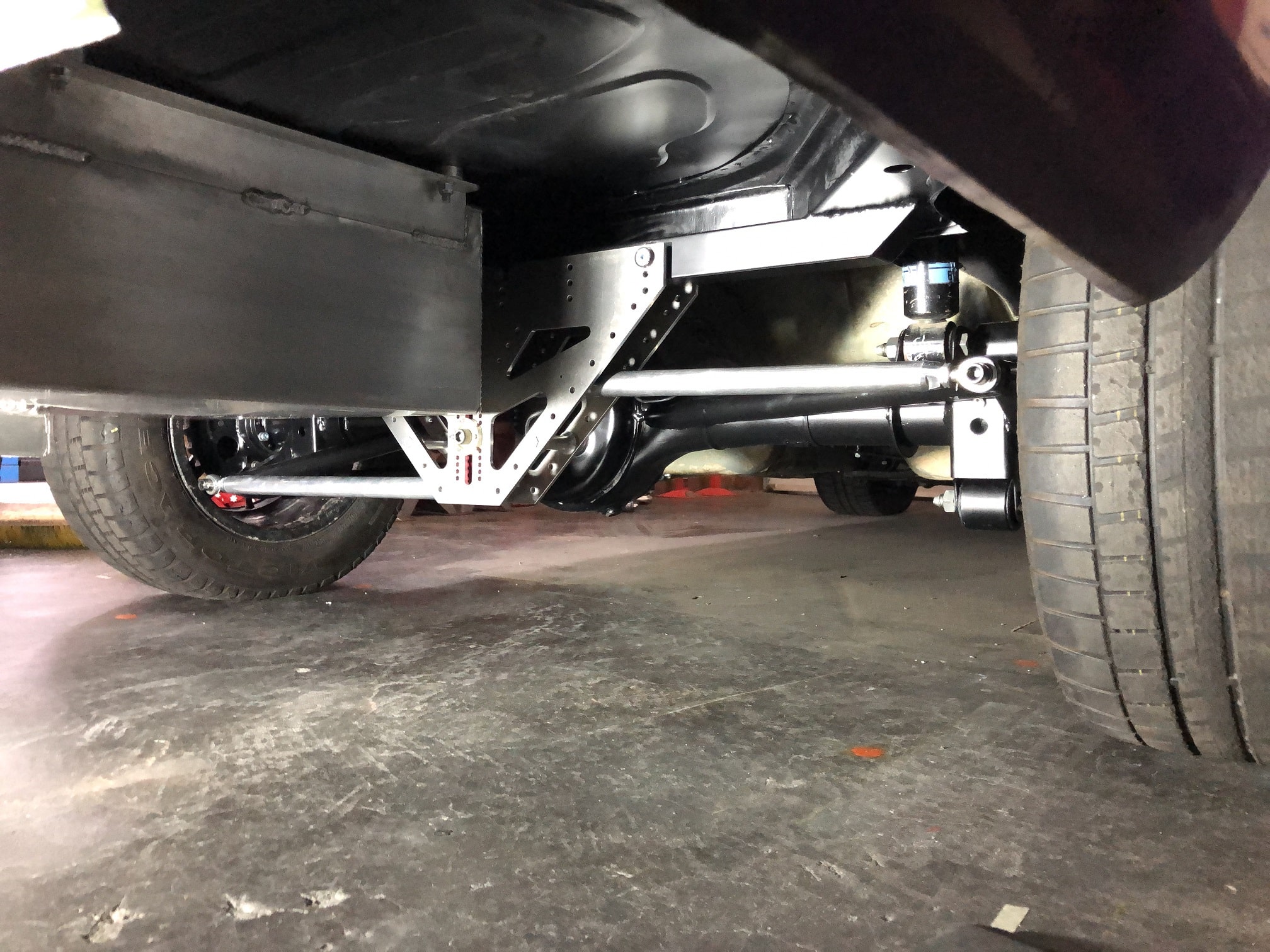

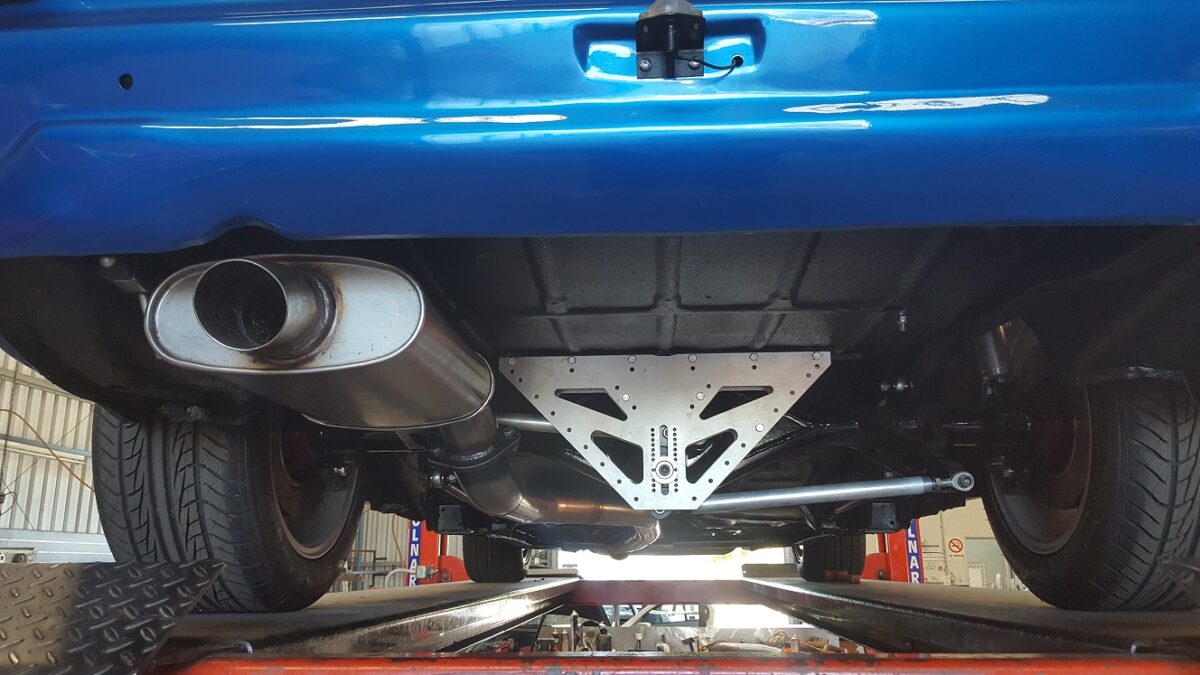

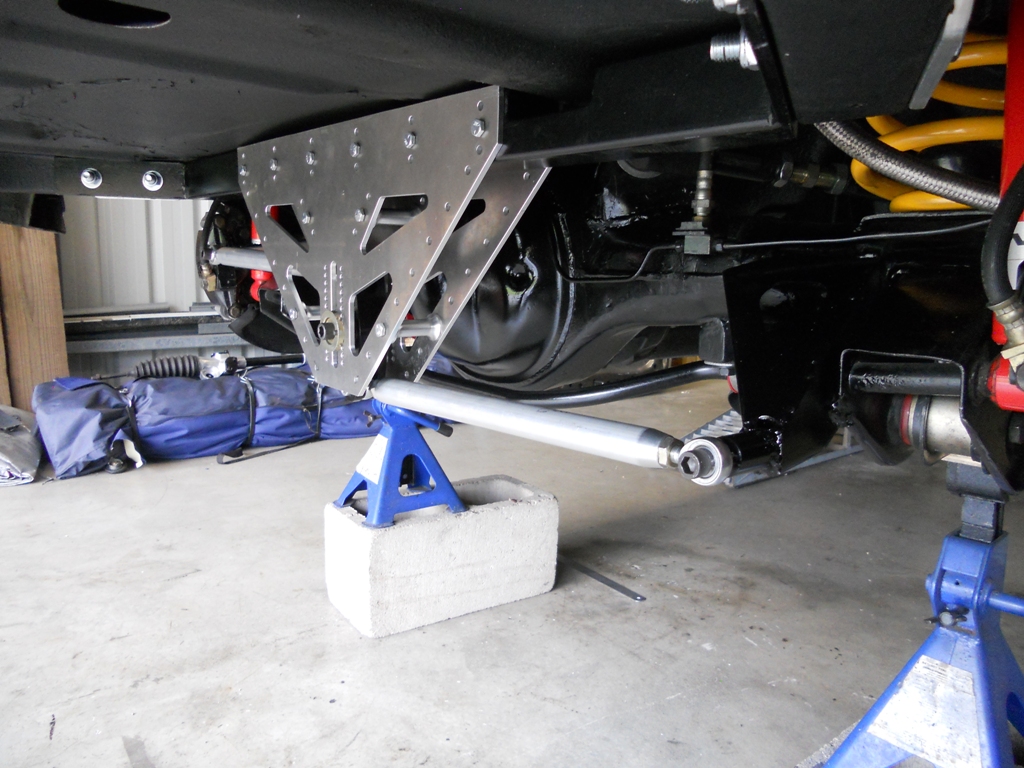

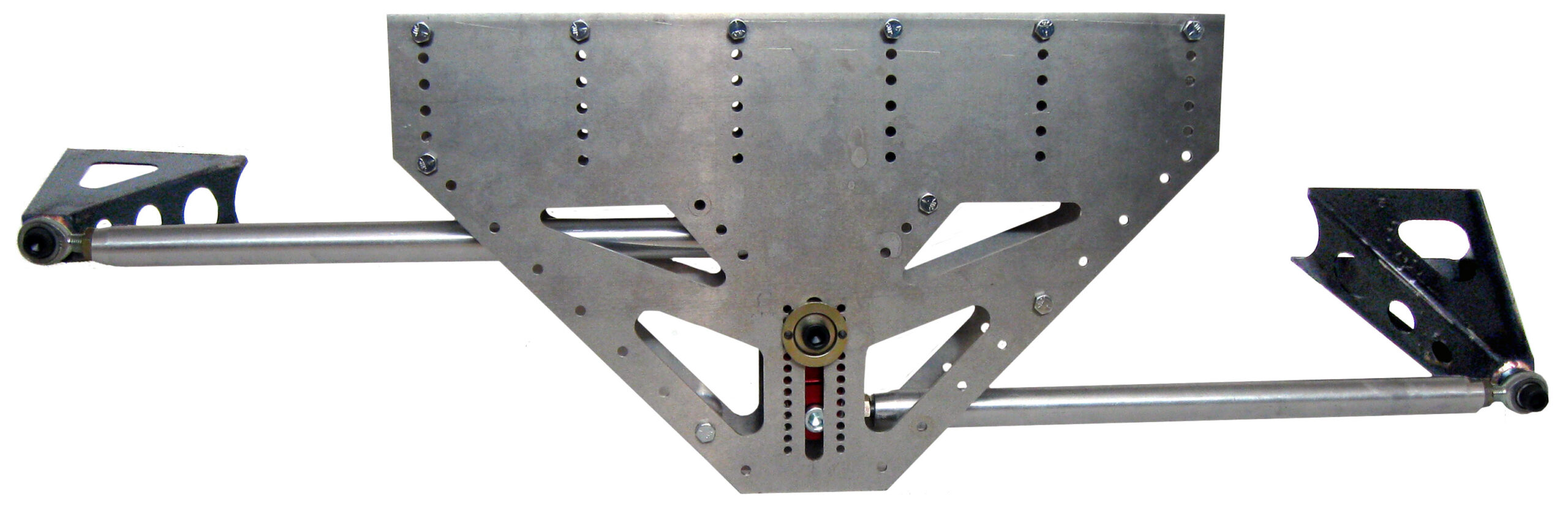

In our easy to use peg adjustable Watt’s linkage kits, adjusting the roll centre is carried out under the car by simply loosening the pivot bolt and moving the locating washer up or down. As with our screw adjustable kit, the body mounted bell crank allows for easier adjustments and gives a more consistent roll centre compared to an axle housing mounted setup.

These packages have proved very popular across all forms of motorsport, including Sports Sedans, Touring Car Masters, Improved Production, Nc Touring Cars, and Speedway. It’s an ideal way to fine tune your suspension, and in conjunction with one of our Race Products camber kits, it’s the best way to gain an improvement in outright lap speed for your racecar.

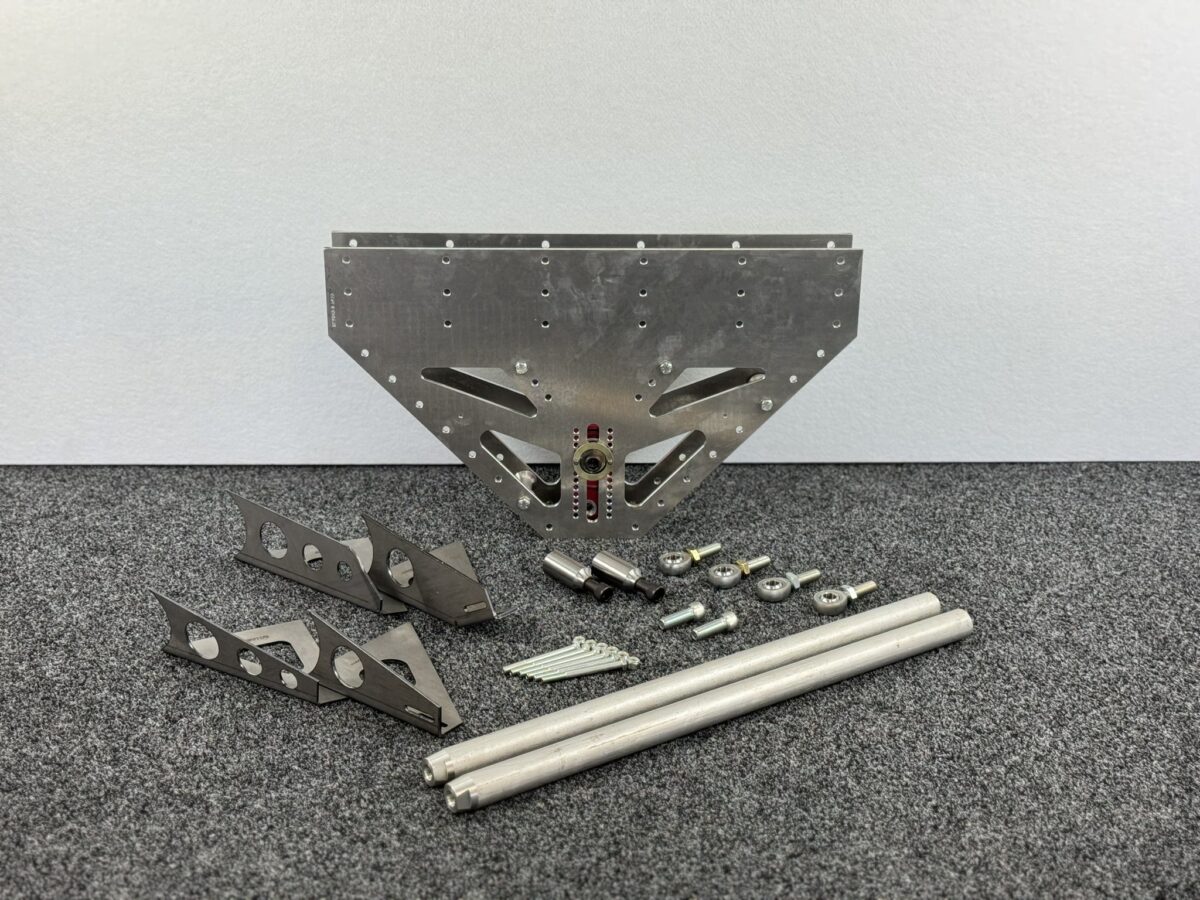

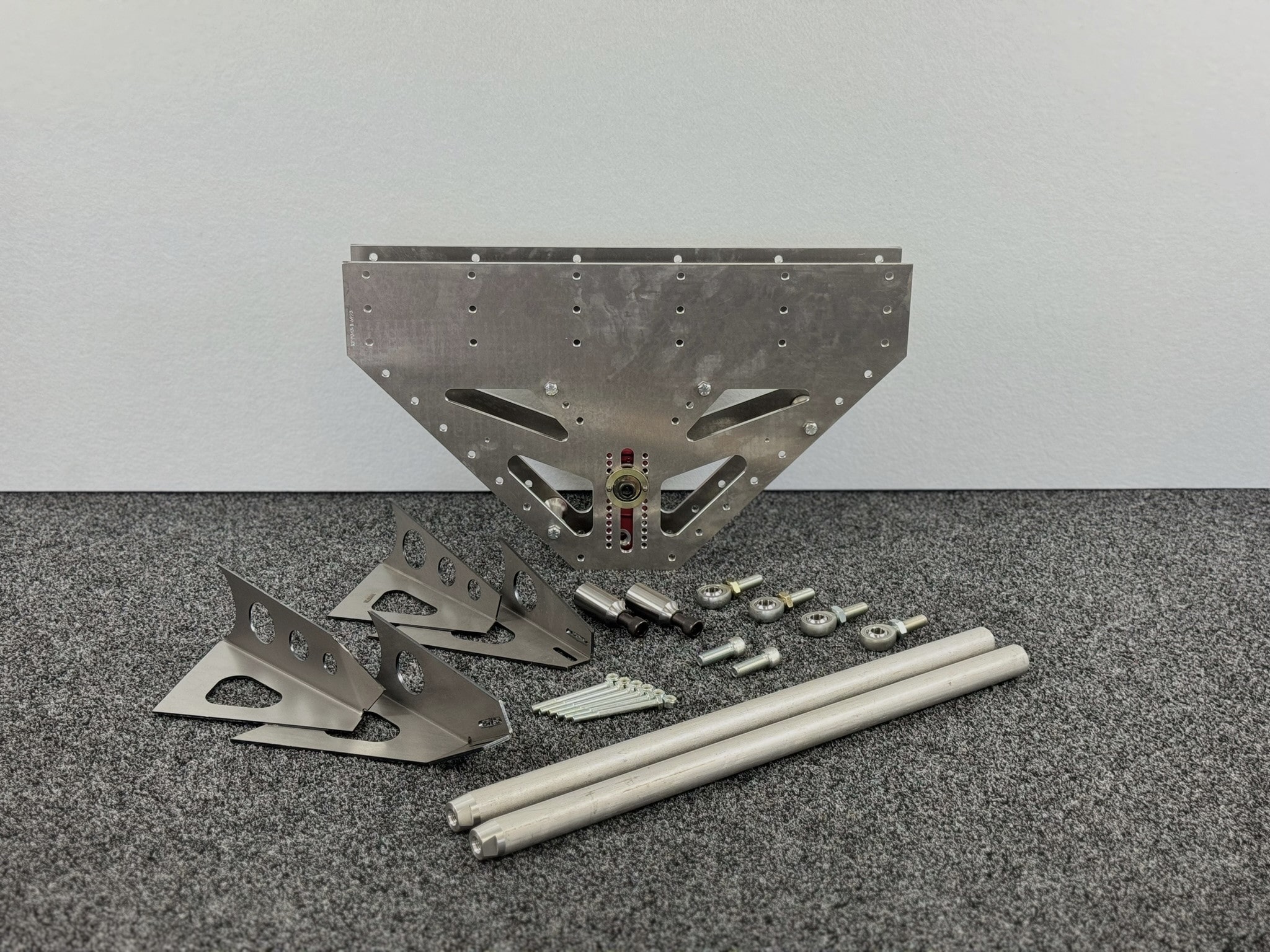

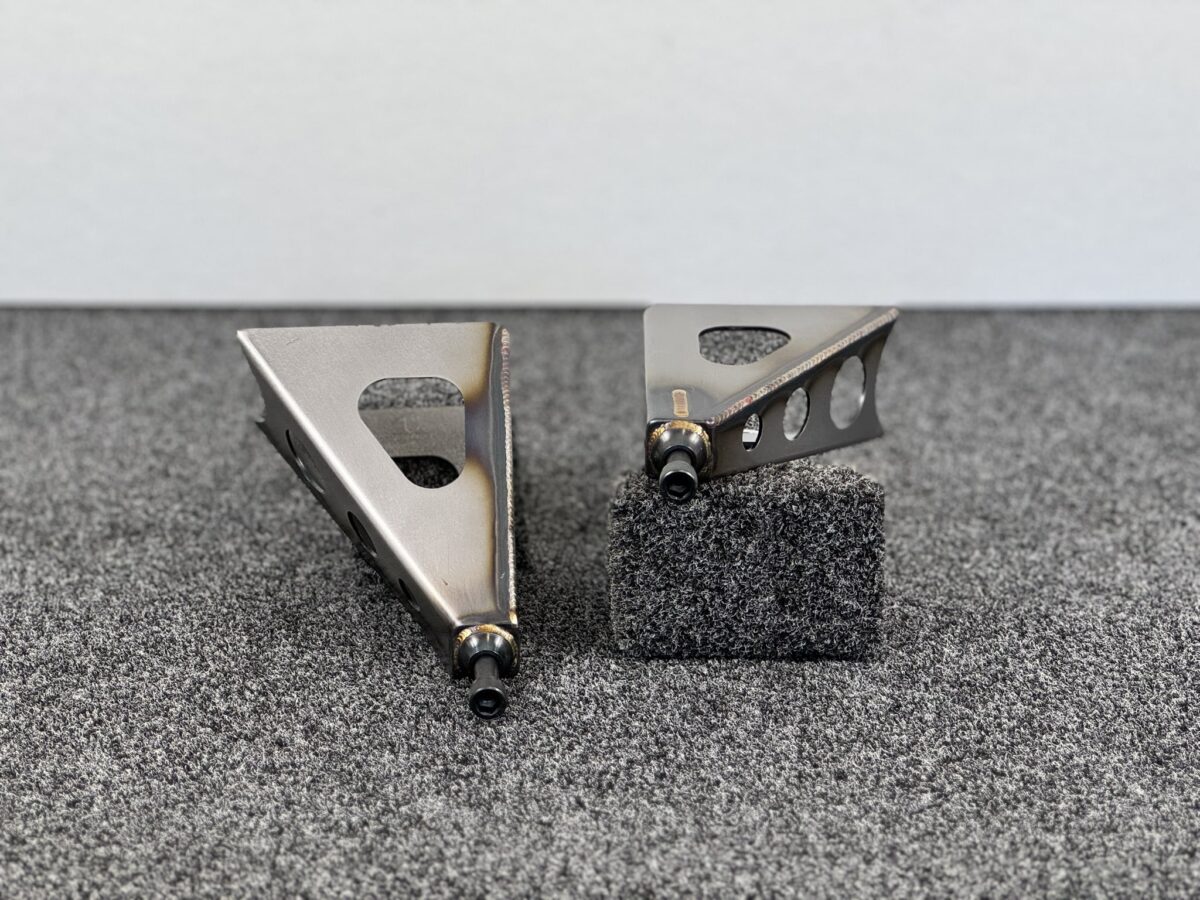

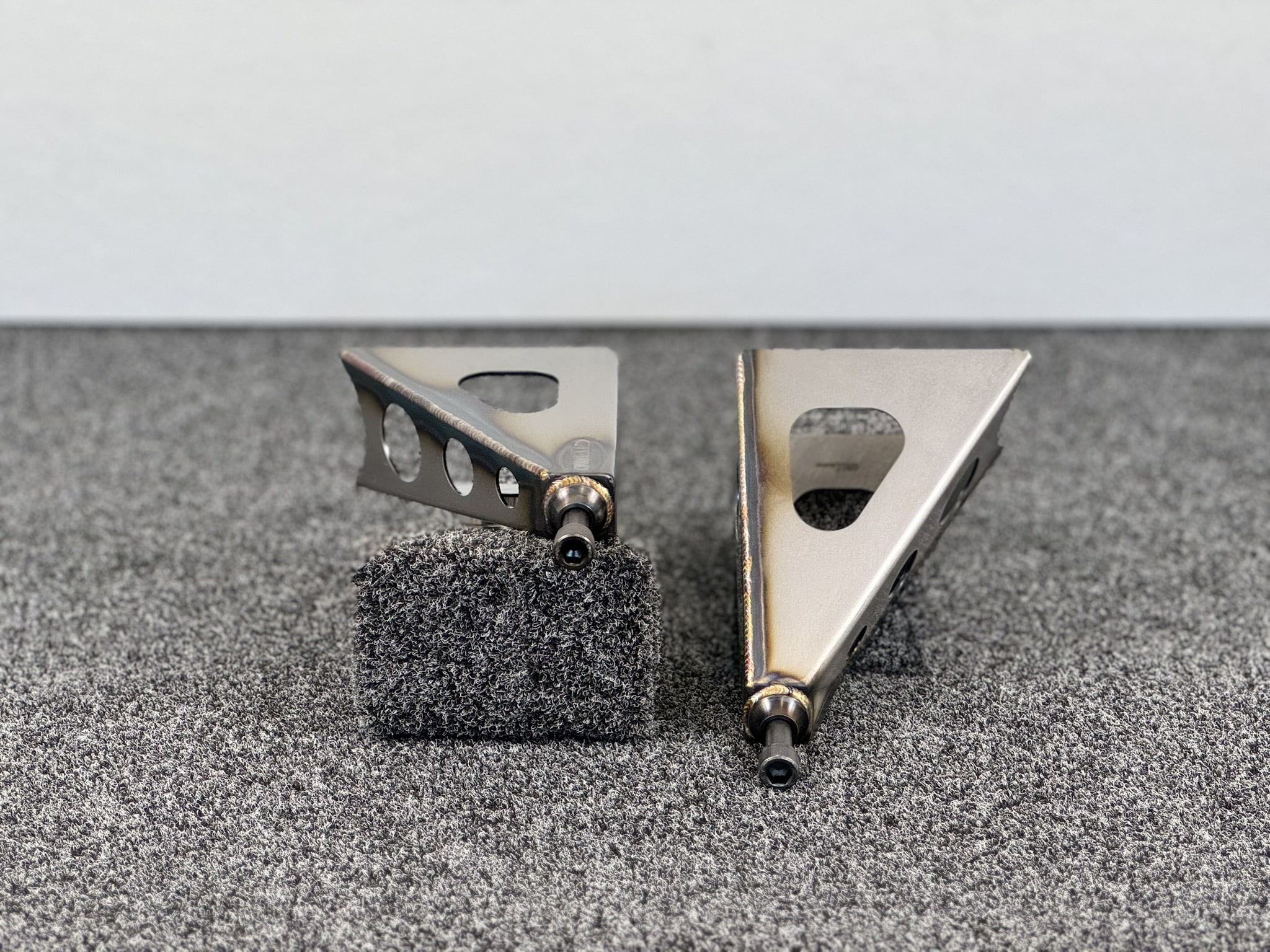

Our peg adjustable Watt’s linkage kit is available in one universal height. The kit can be trimmed to give a range of bracket heights from 290mm down to 200mm for cars with very low boot floors or ride height. The towers however can be supplied either right hand low/left hand high or left hand low/right hand high, depending on things like exhaust system placement in the vehicle and in a variety of different tube sizes.

Click here for installation drawings and dimensions

FIND OUT MORE ABOUT WATT’S LINKAGE KITS

DOWNLOADS:
Information sheet?
Spec Sheet ?
Installation drawing
